TANDEM SPRING AXLE HANGER KIT

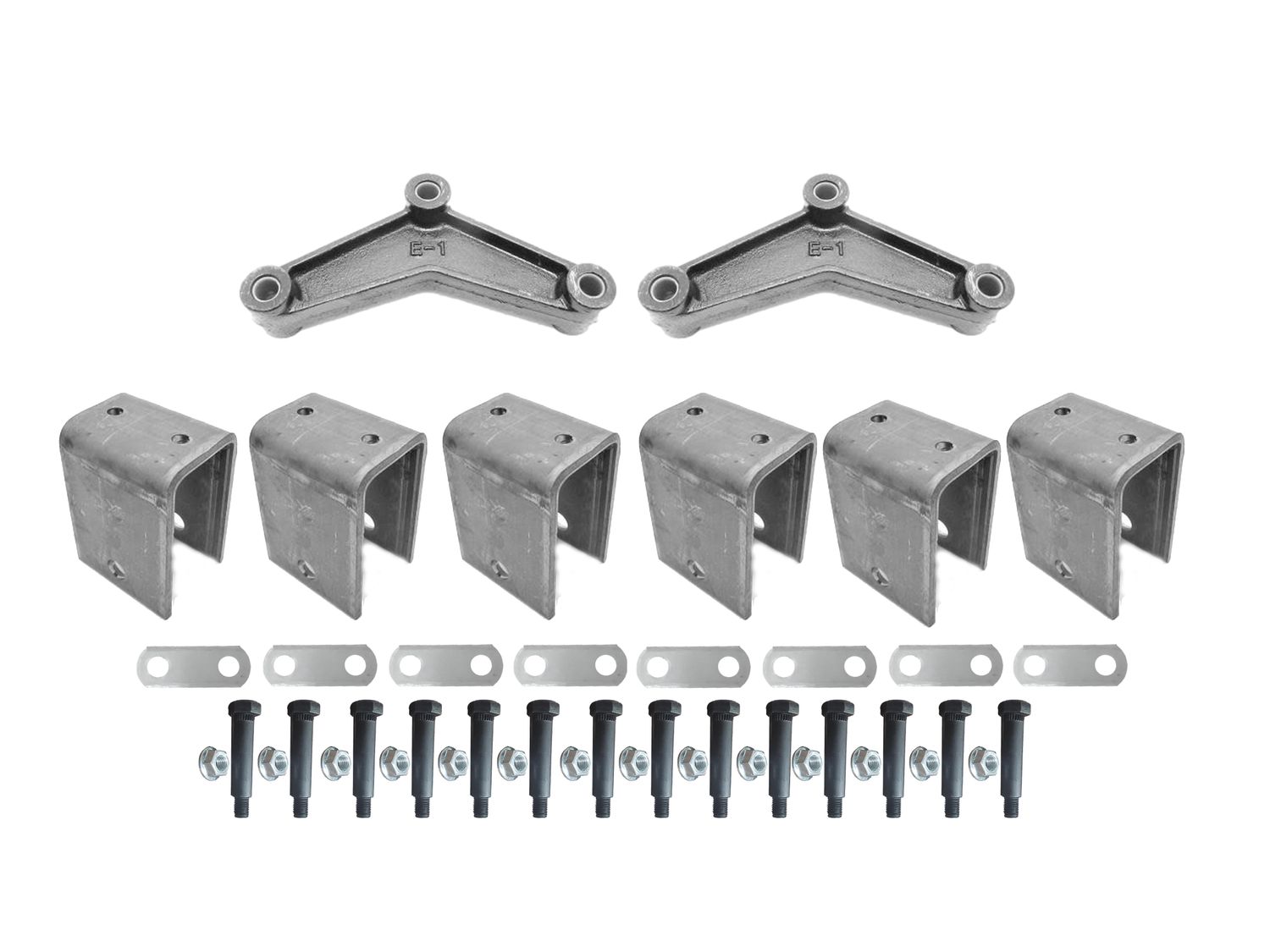

This kit includes: 2 Equalizers, 6 Hangers, 8 Shackles, 14 Bolts & Nuts.
Shackles Are:
3 1/2" long X 1 1/4" Wide X 3/16" Thick
Holes are 2 1/4" centered apart and measure 9/16" in Diameter
Hangers measure:
4" Long X 3" Wide X 2 1/4" Thick
Holes on bottom are 1 3/4" centered and 5/16" in diameter
Holes on end are centered 1 1/2" side to side and 15/16" from the end of Hanger and 9/16" in diameter
Swivel Equalizers Measure:
7 1/4" across the base X 3 3/4" high. Sides are 5 1/8" long each
Swivel Equalizer is 1 3/4" wide
Holes on the base are 6 1/8" centered and sides are 5" centered from base
Holes are 9/16" Diameter inside dimension and have a plastic sleeve insert to allow the bolt to slide easily.
Tandem Spring Axle Hanger Kit includes:
- 6 3 1/4" Steel Hangers 3"X4" - 1 7/8"-wide opening
- 2 Tandem Axle Swivel Equalizers
- 8 Shackles
- 14 Shackle Bolts with Nuts
