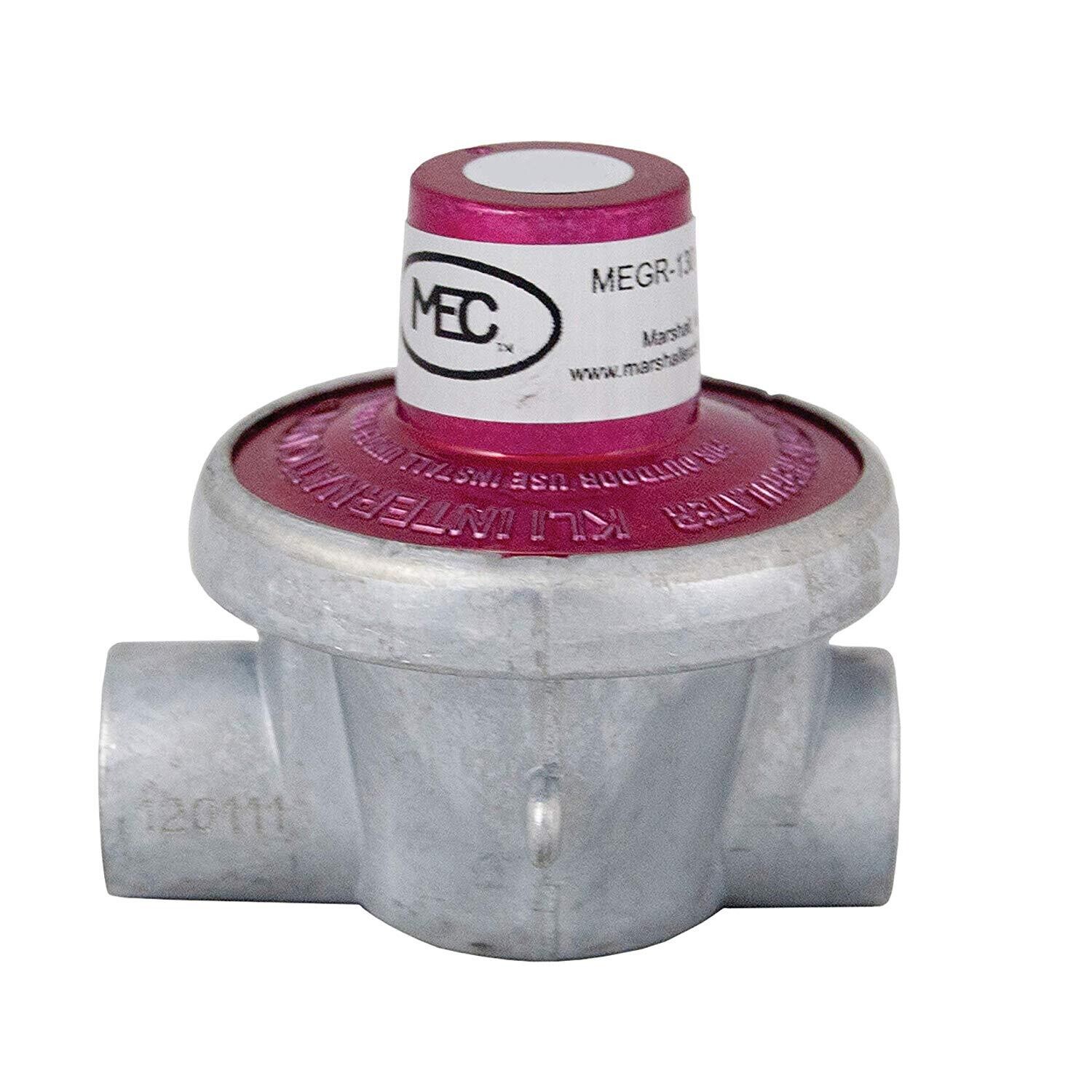

The MEGR-130 series fixed high pressure single stage regulators are designed to provide an economical solution for pounds to pounds service applications. The MEGR-130 can be used to regulate air as well as LP gas. Regulators must be installed in compliance with federal, state or local codes or laws in accordance with NFPA 58.The MEGR-350 is a single stage, adjustable high pressure regulator. The body and bonnet of both the fixed and adjustable regulators are precisely machined and feature a crimped design and fabric reinforced rubber diaphragm creating a positive seal for leak-free performance
- Type: Fixed / PSI
- Max. Inlet Pressure: 250 PSIG (17,2 bar)
- Inlet Connection: 1/4" FNPT
- Outlet Connection: 1/4" FNPT
- Orifice Diameter: 0.0625"
